# Layout Containers

**Modular and spatial configurator** physical constraints can now be setup easily in platform using new **Layout Container** nodes to build Room Builder like interactions in the Threekit Player:

* Item Selection and highlighting
* Item positioning/dragging
* Positioning constraints

![](https://content.gitbook.com/content/efQOUWnh8WUpteoAKY9N/blobs/RipHk6TVkbJF5yCGubQs/LayoutContainer_1.gif)

Layout Container nodes control for movement constraints, selectability of elements, and outline styling.

**Layout Container Node**

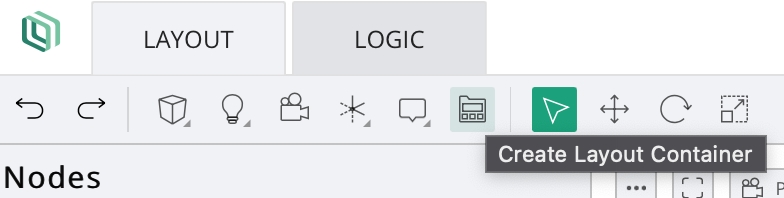

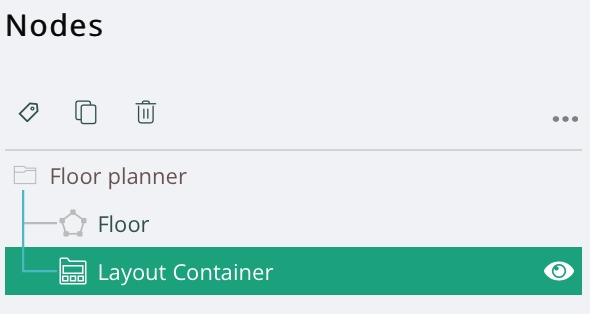

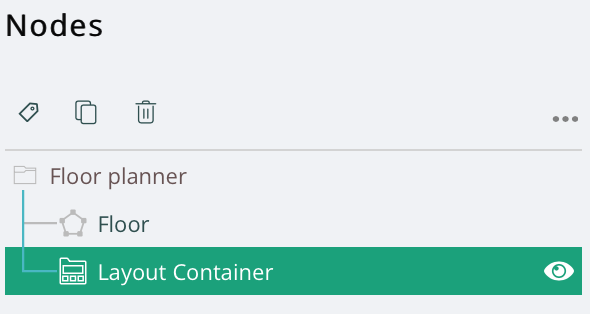

Layout Container nodes can be added in the scene using the new toolbar icon or the right-click menu in the Scene Tree:

![](https://content.gitbook.com/content/efQOUWnh8WUpteoAKY9N/blobs/qt7SJm1Af48bNZ4nDYo5/LayoutContainer_2.png)

<img src="https://content.gitbook.com/content/efQOUWnh8WUpteoAKY9N/blobs/bVzpOlNdsHxyh4en23Ji/LayoutContainer_3.png" alt="" width="443">

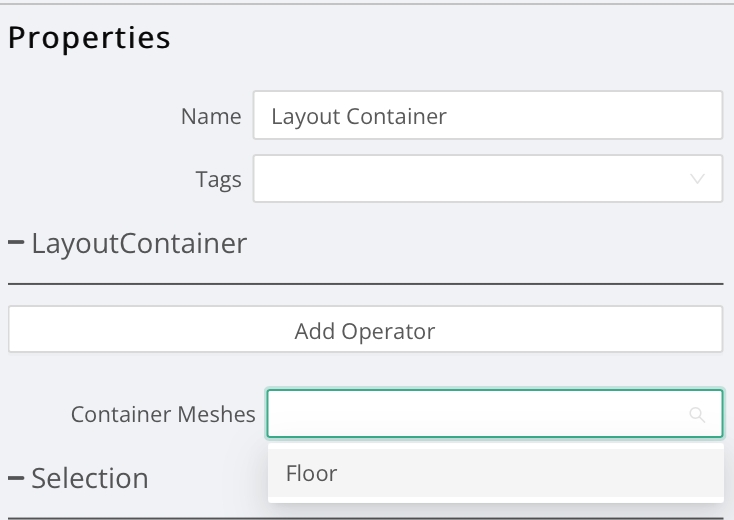

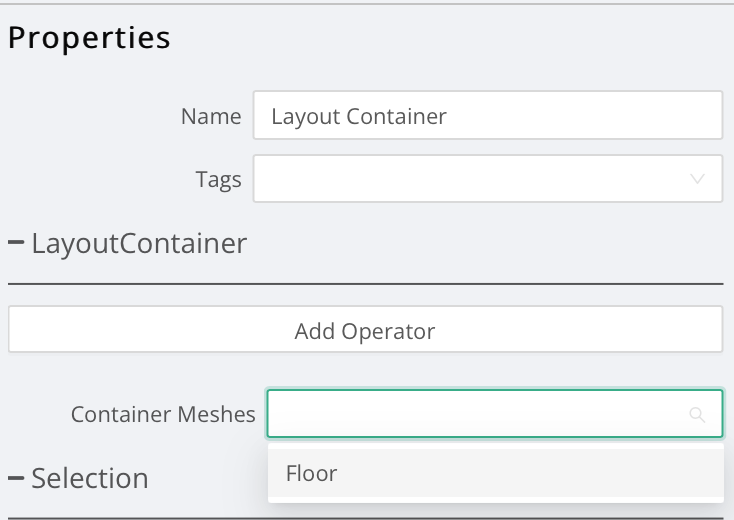

To enable dragging, use the **Container Meshes reference** field to reference existing node(s) within he asset to act as dragging constraints. In this example, there is a Plane node representing a floor so that elements cannot be moved beyond it:

<img src="https://content.gitbook.com/content/efQOUWnh8WUpteoAKY9N/blobs/6nEa273hKv2ZmvRLDkAq/LayoutContainer_4.png" alt="" width="551">

**Selection color & thickness**

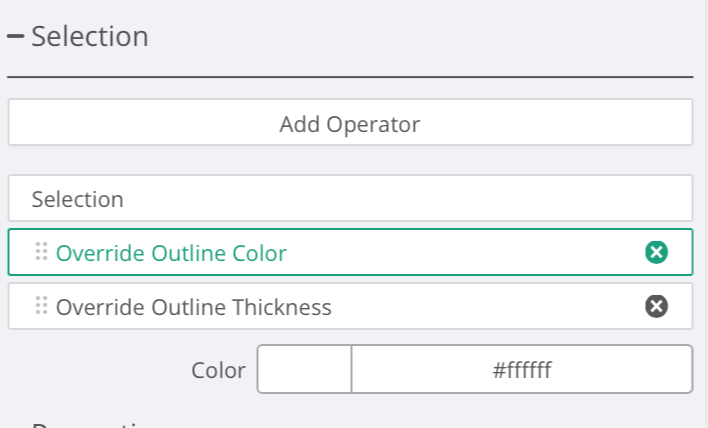

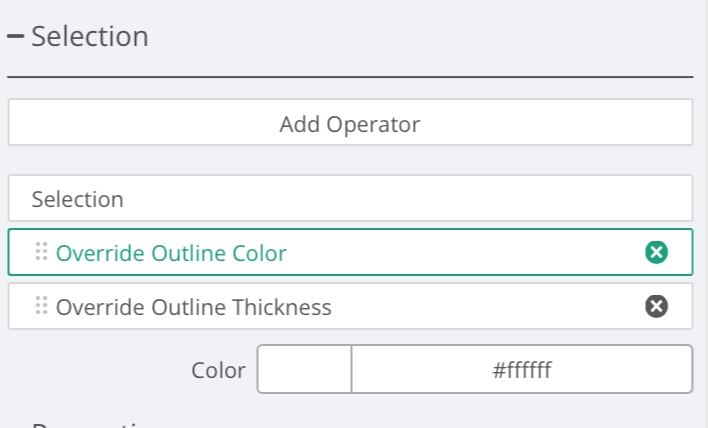

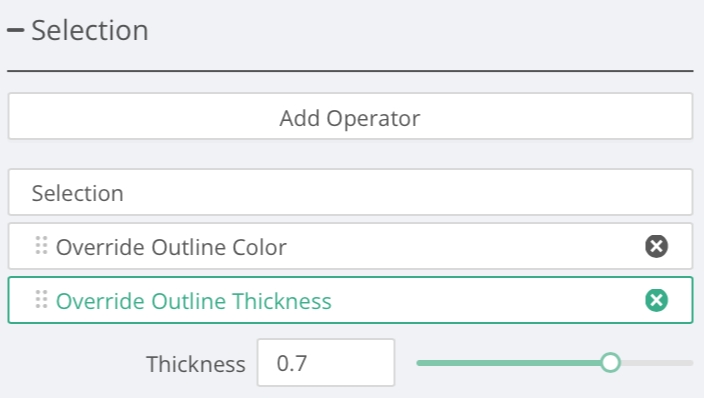

Layout Containers contain overrides for the default Selection Highlight Color and Outline Thickness as Operators in the Selection section:

<img src="https://content.gitbook.com/content/efQOUWnh8WUpteoAKY9N/blobs/j9K8b5DVGkn58mbriIAy/LayoutContainer_5.png" alt="" width="531">

<img src="https://content.gitbook.com/content/efQOUWnh8WUpteoAKY9N/blobs/Qn5lOtxtHTq4iWwX7NL6/LayoutContainer_6.png" alt="" width="528">

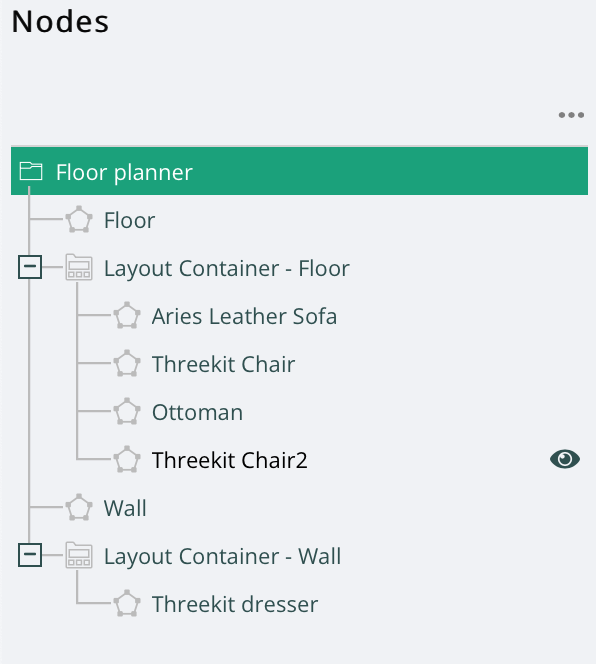

Then, models can be imported into the asset and made children of the Layout Container in order to be constrained to the Floor Plane:

<img src="https://content.gitbook.com/content/efQOUWnh8WUpteoAKY9N/blobs/subvCV2cI6rngSxHfkKb/LayoutContainer_7.png" alt="" width="447">

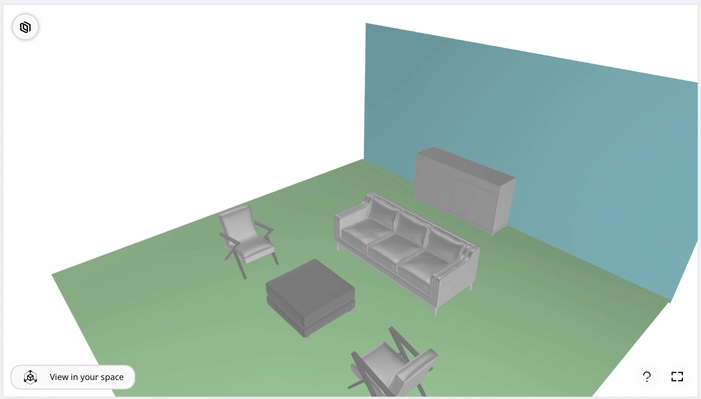

In the example above, there are multiple Layout Container nodes to produce Floor and Wall constraints.&#x20;

**Props & immovable objects**

Props, or unselectable/immovable, elements can be added to the asset simply by placing the outside of layout containers.&#x20;

#### Selectable components

Want to make components of a product selectable in the Player? Layout Container nodes can also be used to make children nodes selectable without any movement. Simply leave the **Container Meshes** reference blank and all children will still be selectable in the player.


---
